Free Adjustment
Out of tolerance? We provide complimentary adjustment services to restore your instrument to factory specifications immediately. No need to send it elsewhere for repairs.
Audit-Ready Certificates
Fully compliant with the latest ISO 21501-4 standards. Our certificates are guaranteed to pass audits, covering all critical parameters including Counting Efficiency.
Multi-Model Expertise
We specialize in calibrating all major particle counter models, Portable, Handheld and Remote, including R5104, ApexR5, ensuring consistent quality across your entire fleet.
Scope of Service
- Particle Size: 0.2 um, 0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm
- Flow Rate: 0.1 CFM, 1.0 CFM, 50 LPM, 100 LPM
- Standard Used: NIST Traceable Standards
- Compliance: ISO 17025, ISO 21501-4 , ISO 14644 , GMP Annex 1

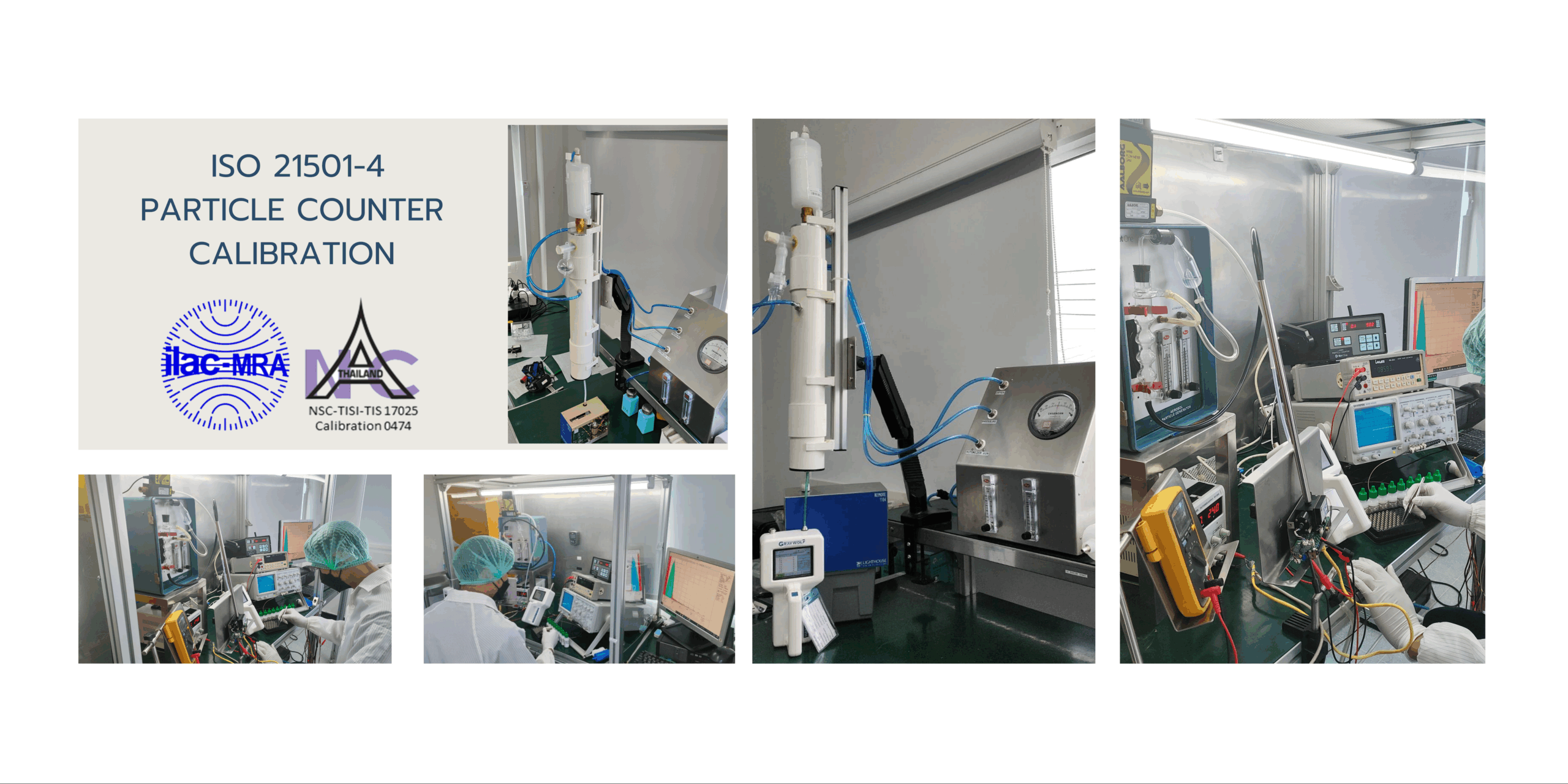

Is Your Calibration Truly ISO 21501-4 Compliant?
ISO 21501-4 is the rigorous standard that defines the performance requirements for Light Scattering Airborne Particle Counters (LSAPC). To ensure data integrity and audit readiness, a calibration certificate must go beyond basic checks.
A fully compliant calibration must verify all minimum requirement parameters specified by the standard. Omitting any of these critical tests means the instrument has not been fully validated, which could pose a risk to your cleanroom monitoring process.
1. Sampling Flow Rate
- Verification of the volumetric flow accuracy to ensure the sample volume calculation is precise.
2. Size Setting Error⭐
- Confirms the accuracy of the threshold voltage settings, ensuring the instrument classifies particle sizes correctly.
3. Size Resolution⭐
- Tests the sensor’s ability to differentiate between particles of similar sizes (narrow distribution width), a key indicator of sensor health.
4. Counting Efficiency ⭐
- The critical comparison of the Unit Under Test (UUT) against a high-precision Reference Instrument to ensure accurate particle counting performance.
5. False Count Rate (Zero Count)
- Measures intrinsic electrical noise and stray light to ensure the instrument does not record ‘phantom’ particles in clean air.
At Volchatex Engineering, we strictly adhere to all 5 parameters in every calibration certificate we issue.
